Decentralized live migration¶

Decentralized live migration is a variation of storage live migration that allows you to migrate virtual machines between namespaces or even between different Kubernetes clusters. This can be useful for a variety of reasons including:

Balancing Workload: Distributing virtual machines between clusters helps optimize resource utilization. If one cluster is heavily loaded while another is idle, rebalancing can significantly improve operational efficiency.
Facilitating Maintenance: For environments with multiple clusters, virtual machine migration allows for seamless maintenance. You can move virtual machines off a cluster slated for upgrades or shutdown, ensuring zero downtime for your services.
Expediting Restores: Instant restore capabilities from backup vendors, particularly when coupled with namespace migration, can drastically speed up recovery times. virtual machines can be quickly restored to a temporary location and then migrated to their original namespace and storage.

This document assumes the presence of an orchestrator for managing resource creation and removal. While future KubeVirt versions will incorporate an orchestrator for decentralized live migrations, the examples provided here detail the underlying steps an orchestrator would perform rather than utilizing one directly.

Decentralized live migration Feature Gate¶

Decentralized live migration support must be enabled in the feature gates to be available. The feature gates field in the KubeVirt CR must be expanded by adding the DecentralizedLiveMigration to it.

Architecture¶

Compute live migrations

Compute live migrations are characterized by a single VirtualMachineInstance resource and a single VirtualMachineInstanceMigrations resource. A migration is initiated by creating a VirtualMachineInstanceMigration resource, with coordination occurring via the VirtualMachineInstance's status, as shown in Figure 1.

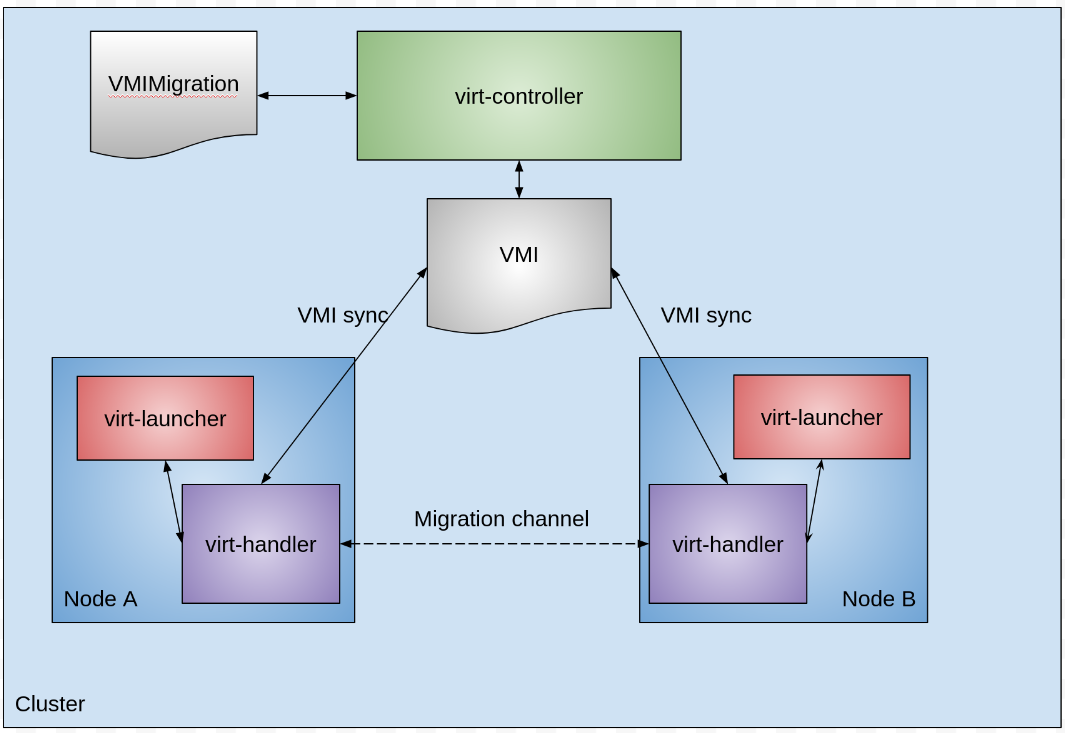

Figure 1:

Storage live migrations

Storage live migrations, a variation of compute live migrations, involve copying the virtual machine's state and disk contents over the migration network. More information on initiating a storage live migration can be found in this document.

Decentralized live migrations

Decentralized live migrations are a variation of storage live migrations. They involve two VirtualMachineInstances and two VirtualMachineInstanceMigrations. Similar to storage live migrations, disk contents are copied over the network to the receiving virtual machine. However, the key difference is that the receiving virtual machine has a completely separate VirtualMachineInstance. In order to coordinate the migration, the status of the source and target 'VirtualMachineInstances` have to be synchronized, as illustrated in Figure 2.

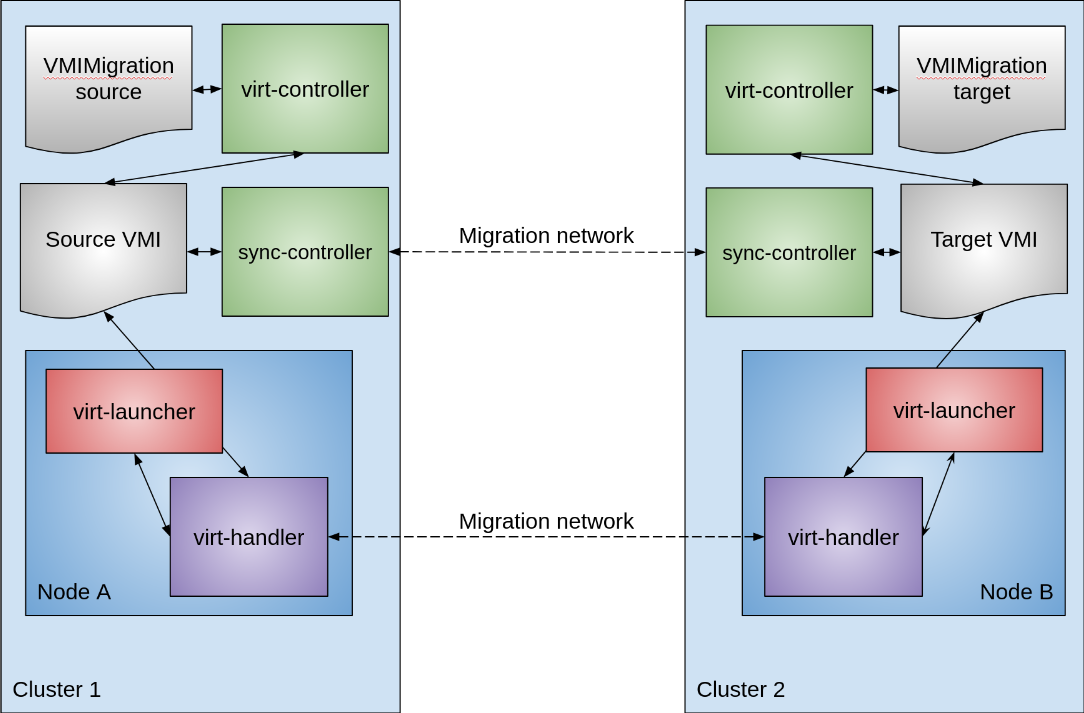

Figure 2:

A dedicated synchronization controller facilitates communication between the source and target VirtualMachineInstances, as depicted in Figure 2. This design enables the reuse of most existing live migration mechanisms developed for compute migrations.

Required resources¶

To migrate a virtual machine between namespaces or clusters, you must create both a target VirtualMachine resource and a target VirtualMachineInstanceMigration resource. A decentralized live migration cannot be achieved using only a VirtualMachineInstance resource.

The target cluster/namespace must possess all necessary resources for the virtual machine to operate. Some resources may not be an exact match on the target. For example, the storage class available on the target might differ from the source. Since decentralized live migration is a type of storage live migration, it is possible to change the storage class on the target and successfully complete the migration. The same applies to networking, though connectivity may be disrupted depending on the network configuration.

Additionally, auxiliary resources, such as a Secret containing an SSH key or a ConfigMap with configuration data, must also be copied and made available on the target cluster.

Target virtual machine¶

In order to construct the target VirtualMachine resource, it makes sense to take the bulk of the source VirtualMachine resource fields, but replace the network and disk(s) to match what is available on the target cluster/namespace. The runStrategy must be set to WaitAsReceiver, signaling to KubeVirt that this is a special target virtual machine and that standard virtual machine commands (start/stop) will not function until the migration is completed. Consider the following source virtual machine running on Cluster 1.

Source Virtual Machine:

apiVersion: kubevirt.io/v1
kind: VirtualMachine
metadata:
  name: example-decentralized-lm-vm
spec:
  runStrategy: Always
  template:
    metadata:
      creationTimestamp: null
    spec:
      architecture: amd64
      domain:
            devices:
            autoattachGraphicsDevice: false
          disks:
          - disk:
             bus: virtio
            name: disk0
          interfaces:
          - masquerade: {}
            name: default
          machine:
            type: q35
          resources:
            requests:
             memory: 128Mi
    networks:
    - name: default
      pod: {}
    volumes:
      - dataVolume:
            name: example-decentralized-lm-vm-dv
          name: disk0

A VirtualMachine named 'example-decentralized-lm-vm' is created, utilizing a DataVolume named 'example-decentralized-lm-vm-dv'. This DataVolume can contain any kind of disk image, for example fedora. Due to the runStrategy being set to Always, the virtual machine will always start once the YAML is applied to the cluster.

Within the target cluster, all necessary resources must be available to deploy the target virtual machine. To hold the contents of the source disk, a blank DataVolume is created. While not mandatory, it is advisable to retain the original name.

Target DataVolume:

apiVersion: cdi.kubevirt.io/v1beta1
kind: DataVolume
metadata:
  annotations:
    cdi.kubevirt.io/storage.usePopulator: "true"
  name: example-decentralized-lm-vm-dv
spec:
  source:
    blank: {}
  storage:
    storageClassName: <other storage class>
    resources:
      requests:
        storage: 10Gi

Target Virtual Machine:

apiVersion: kubevirt.io/v1
kind: VirtualMachine
metadata:
  annotations:
    kubevirt.io/restore-run-strategy: Always
  name: example-decentralized-lm-vm
spec:
  runStrategy: WaitAsReceiver
  template:
    metadata:
      creationTimestamp: null
    spec:
      architecture: amd64
      domain:
            devices:
            autoattachGraphicsDevice: false
          disks:
          - disk:
             bus: virtio
            name: disk0
          interfaces:
          - masquerade: {}
            name: default
          machine:
            type: q35
          resources:
            requests:
             memory: 128Mi
    networks:
    - name: default
      pod: {}
    volumes:
      - dataVolume:
            name: example-decentralized-lm-vm-dv
          name: disk0

The source and target virtual machine definitions differ in two key aspects:

The target's runStrategy is set to WaitAsReceiver.
The target virtual machine includes an annotation specifying the runStrategy after migration, which should be the same as the source, in this case it is Always.

Any additional resources beyond the virtual machine disk, such as Secrets or Configmaps, must also be created on the target cluster. Upon creation of the VirtualMachine resource, KubeVirt will generate a corresponding receiving VirtualMachineInstace, which can then be referenced in the target migration resource.

Migration resources¶

Once the target virtual machine has been created, in order to start the migration you need to create a 'source' and a 'target' VirtualMachineInstanceMigration. After both the source and target migration resources have been created the migration will commence.

Target migration resource¶

A target migration resource closely resembles a standard VirtualMachineInstanceMigration resource, with the addition of fields that designate it as a receiving decentralized live migration resource.

apiVersion: kubevirt.io/v1
kind: VirtualMachineInstanceMigration
metadata:
  name: example-target-migration
  namespace: <same namespace as target vm>
spec:
  receive:
    migrationID: <unique identifier>
  vmiName: <name of the vmi that is created from target vm>

The receive field designates this as a target resource for decentralized migration. The migrationID string, uniquely identifies the 'source' and 'target' VirtualMachineInstanceMigrations. The vmiName then maps the migrationID to the appropriate VirtualMachineInstance

Source migration resource¶

The source migration resource now includes an additional field with two sub-fields:

migrationID (identical to the target migration resource)
connectURL. This connection URL is used to connect to the synchronization controller on the target cluster.

There are two methods to acquire the synchronization controller's address:

Accessing the KubeVirt CR on the Target Cluster: If you have access to the KubeVirt CR, a new field named synchronizationAddresses will provide a list of address/port combinations for the connectURL.
After Target Migration Resource Creation: If you lack KubeVirt CR access, once the target migration resource is created, its status will contain a synchronizationAddresses field with the same list of address/port combinations.

The key distinction between these options is that Method 1 allows you to obtain the connection URL in advance, enabling the creation of the source migration resource simultaneously with or prior to the target migration resource.

Once the connection URL is acquired, its value should be placed in the connectURL field of the source migration resource.

apiVersion: kubevirt.io/v1
kind: VirtualMachineInstanceMigration
metadata:
  name: example-source-migration
spec:
  sendTo:
    connectURL: "<synchronization address>"
    migrationID: <unique identifier, same as target migration resource migrationID>
  vmiName: <name of the source vmi>

Configuring KubeVirt CA with cross cluster live migration¶

When migrating between two clusters, each cluster will have its own installation of KubeVirt. Each KubeVirt installation will create and use its own Certificate Authority (CA). This CA is used to secure communication between the synchronization controllers and the virt-handlers during migration. For each cluster to trust the other cluster, the public CA keys must be exchanged between the clusters.

The public CA key is stored in a ConfigMap in the namespace where KubeVirt is installed (defaults to kubevirt). This ConfigMap is named kubevirt-ca. The following is an example of this ConfigMap:

apiVersion: v1
data:
  ca-bundle: |
    -----BEGIN CERTIFICATE-----
...
    -----END CERTIFICATE-----
    -----BEGIN CERTIFICATE-----
...
    -----END CERTIFICATE-----
kind: ConfigMap
metadata:
  name: kubevirt-ca
  namespace: kubevirt

In the same namespace, there will be another ConfigMap named kubevirt-external-ca which will have a ca-bundle field as part of its data. In order for Cluster1 to trust the CA from Cluster2, take the ca-bundle from Cluster2's kubevirt-ca ConfigMap and copy the ca-bundle into Cluster1's kubevirt-external-ca and vice versa. After you update the kubevirt-external-ca, it will automatically clear out the contents of the kubevirt-external-ca but copy the contents into the kubevirt-ca ConfigMap. It will remove invalid, duplicate and expired keys before doing so.

Depending on how long the keys are valid you will have to do this process again once the keys expire. By default a KubeVirt CA is valid for 2 days

Cancelling decentralized live migration¶

To cancel an active decentralized live migration, delete the corresponding migration resources from both the source and target cluster/namespace. This action signals KubeVirt to cancel the migration. The cancellation process for decentralized live migrations operates under the same principles as standard migration cancellations. There may be a short delay during which the migration could potentially finish, at which point cancelling has no affect.

Migration failure¶

Unlike standard live migrations that automatically retry until completion, failed decentralized live migrations do not. When a decentralized live migration fails, the source virtual machine continues to run on the source, and the target virtual machine enters a failed state. To reattempt the migration, you must manually delete both the source and target VirtualMachineInstanceMigration resources, as well as the target virtual machine.

Limitations¶

Since decentralized live migration is a variation of storage live migration it has the same limitations:

Shareable disks are not supported, as we cannot guarantee data consistency with multiple writers.
filesystem devices are not supported, as virtio-fs does not currently support live migration.
LUN disks are not supported, as we cannot guarantee that the target is also a LUN when migrating.
VM state PVC is RWX on both source and target. Due to a bug it will not copy the vTPM device data, because it is assumed that having shared storage on both source and target is the same storage.
